Woodworking can be a fun hobby or profession, with the ability to turn raw materials into beautifully crafted pieces. The problem is, dust collection systems are often overlooked.
Proper dust management is critical to maintain a safe, clean, and efficient woodworking environment. Unfortunately, even experienced woodworkers can fall prey to some common mistakes in their dust collection systems.
Let’s delve into these issues and how to avoid them.
Understanding Dust Collection
Before we jump into these common mistakes, you need to understand why dust collection systems are so important in woodworking.
Besides the obvious mess it creates, wood dust can pose HUGE health risks, such as allergic reactions, respiratory issues, and even cancer.
It can also cause issues in your tools and workshop, which include fire hazards and your equipment wearing out faster. Some of the biggest offender tools for dust are routers and table saws.
Now that we understand the importance of dust collection systems better, let’s look at the common pitfalls and ways to avoid them.
Mistake #1 – Neglecting Dust Collection Altogether
The most significant mistake is not having a dust collection system in the first place.
Why it’s a Mistake: Wood dust is not just a nuisance; it’s a health and safety hazard. Prolonged exposure can lead to serious health complications, and a dusty environment can significantly reduce the lifespan of your tools.
Additionally, a buildup of fine wood dust in the air can lead to a fire or explosion.
How to Avoid it: Investing in a good dust collection system is a must.
You need at least a basic shop vacuum to start, but for larger projects and heavy-duty tools, a dedicated dust collector is recommended.
Mistake #2 – Incorrect Ductwork Sizing
Ductwork sizing is a crucial factor in a dust collection system. Many woodworkers use ductwork that is either too small or too large.
Why it’s a Mistake: Using ductwork that’s too small restricts airflow, reducing the efficiency of your system. On the other hand, ductwork that’s too large can result in lower air velocity, which makes it difficult for the system to capture and transport dust effectively.
How to Avoid it: The ideal duct size depends on your dust collector’s capacity and the distance from the tool.
A good rule of thumb is to start with a 4-inch diameter duct for most small to mid-size tools. For larger tools, a 6-inch or larger duct may be necessary.
Ductwork Material: While some use PVC, (the heavier schedule 40, or lighter and less expensive sewer pipe) works fine but some also refer to “static buildup” on the pipe and the potential for fire.
Others have tried using duct pipe that would be used for a home clothes dryer. The problem is this is very thin-walled and can collapse with systems using higher suction.
I strongly recommend using ductwork that is at least 24-26 gauge to avoid this potential problem. Also, remember to always use “sweeping” elbows to keep your airflow at its maximum. If you can use two 45-degree elbows instead of one 90, do it.
Efficiency in your dust collection system is very important.
Mistake #3 – Inadequate Filtration
A dust collection system without good filtration is just moving the dust around… not collecting it.
Why it’s a Mistake: The finer dust particles pose the greatest health risks. If your dust collector doesn’t have adequate filtration, these fine particles will simply be sent back into the air to breathe.
How to Avoid it: Make sure your dust collector has a filter rated for particles 1 micron or smaller. It’s also very important to keep the filter(s) clean to maintain its effectiveness.
Mistake #4 – Not Connecting All Tools
Many woodworkers make the mistake of only connecting their dust collector to their most frequently used tools.
Why it’s a Mistake: Any tool that cuts or sands wood generates dust. If you’re not collecting dust from every tool, you’re still risking health issues, damage to other tools, and a mess in your workshop.
How to Avoid it: Connect all your tools to the dust collector, not just the ones you use most often. Quick-connect fittings make it easy to move the hose from tool to tool.

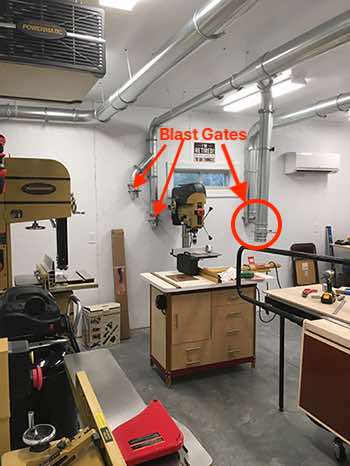

Extra consideration: If you have longer runs of ductwork, to multiple machines, the use of “Blast Gates” is important (make sure they are “metal” and not plastic… you’ll thank me later).
Blast gates are placed on different trunk lines going to different machines, and when that machine is not being used you should close the blast gate to that machine.
This helps to focus your dust collection system’s suction pressure to another specific place to achieve maximum dust extraction at that desired location.
I recommend putting blast gates near the “beginning” of each trunk line (right after the elbow that starts each line, not at the end of a line) so you’re not pressurizing the entire line when not in use.
Mistake #5 – Poor Placement of Dust Collection Points
Another common mistake is the incorrect placement of dust collection points on the tools.
Why it’s a Mistake: Not all dust is created equally, and not all dust is generated in the same place. If your collection point is not where the most dust is produced, you’re going to miss a lot of it.
How to Avoid it: Take the time to understand where each tool generates the most dust and place your collection point there. This may be above, below, or beside the tool, depending on its design.
Mistake #6 – Not Cleaning the System Regularly
Many woodworkers set up their dust collection systems and then forget about them.
Why it’s a Mistake: A dust collection system’s effectiveness decreases as the filters and bags fill up, and can even lead to system failure if not maintained.
How to Avoid it: Regularly inspect and clean your system. Empty dust bags and clean filters as per the manufacturer’s recommendations.
Mistake #7 – Ignoring Personal Protective Equipment
Even with the best dust collection system, some dust will inevitably escape into the air.
Why it’s a Mistake: As previously mentioned, wood dust can lead to serious health issues. If you’re not wearing the proper personal protective equipment (PPE), you’re putting your health at risk.
How to Avoid it: Wear a dust mask or respirator, along with safety glasses, every time you work with wood. In particularly dusty operations or when working with exotic woods that can cause allergic reactions, consider using a powered air-purifying respirator.
3 Budget Ranges for Buying a Dust Collection System
Here are some equipment options to consider for your woodworking dust collection system, along with some links to take a look at. I have divided them into 3 budget categories: low, medium, and high.
These costs can vary depending on several factors such as; your specific needs, location, brand, equipment availability, and current market conditions, but this will give you a general idea of where to start.
NOTE: I have NOT included incedental or consumable items, like filter replacements, so although they are no usually expensive, just be aware those costs will come up.
Low-Budget Dust Collection Systems:
1. Shop Vac: Though it’s not ideal for large-scale dust collection, a shop vacuum can be good enough to start with for beginners who have a smaller workshop (with an affordable cyclone option mentioned below).
You can find a decent shop vacuum for around $50 to $100. Our Low-Budget Shop Vac Pick
2. Dust Deputy Cyclone Kit: For around $50, this add-on can convert your shop vac into a cyclonic dust separator, improving its efficiency. Our Low-Budget Cyclone Kit Pick
3. Air Filtration Unit: For about $150, you can purchase a basic air filtration unit to capture airborne dust that your shop vac might miss. Our Low-Budget Air Filtration Pick
Bonus Recommendation:
Although it’s a little more than the $150 price point, you may want to check out this hanging unit from Dewalt with 2-stage filtration, 3-speed, HEPA system.
NOTE: Of course, you can build a square wood box with a squirrel cage fan inside and cutouts to mount replaceable filters on the 4 sides of the box. What materials and equipment you use is entirely up to you, but should be able to do it for $100 +/-.
Medium-Budget Dust Collection Systems:
Low-Budget Price Range: $250-$300
1. Portable Dust Collector: A portable dust collector has a larger capacity than a shop vac and is better suited for more extensive operations. These units can range from $200 to $500. Our Medium-Budget Shop Vac Pick
2. Cyclone Dust Separator: This unit uses centrifugal force to separate dust and other particles. You can purchase a standalone cyclone dust separator for around $300 to $400. Our Medium-Budget Cyclone Kit Pick
3. Higher Quality Air Filtration System: For $300-$500, you can purchase a higher capacity air filtration system that can handle a medium-sized shop. Our Medium-Budget Air Filtration Pick
Medium-Budget Price Range: $800-$1,400
High-Budget Dust Collection Systems:
1. Centralized Dust Collection System: These systems are designed for professional or large-scale home workshops. They consist of a large dust collector connected to a network of ducts that reach every part of the workshop.
Prices for these systems vary widely based on capacity, but you can expect to spend $1000 or more. Our High-Budget Dust Collection Pick
2. Industrial-Grade Air Filtration System: For about $600-$1000, you can invest in an industrial-grade air filtration system.
These systems can handle large volumes of airborne dust, making them ideal for larger operations. Our High-Budget Air Filtration System Pick
3. Automated Dust Gates: These gates automatically open and close based on which tool is in use, optimizing airflow and efficiency.
These are more of a luxury and can cost several hundred dollars for a full set, depending on the number of tools in your shop. Our Automated Dust Gates Pick
High-Budget Price Range: $1,600-$4,000
Dust Mask Buying Options
Even with all the options above for buying a dust collection system, you WILL want to consider some dust masks, AND, masks for spraying finishes on your project. Here are a couple of ideas to consider:
Our Pick – Low-Budget Dust Mask
Our Pick – Medium-Budget Dust Mask
Our Pick – Masks Spraying Finishes or Vapors
Remember that investing in a dust collection system not only offers a cleaner and healthier work environment, but it also enhances the longevity of your tools and equipment.
Start with a system that fits your current budget and needs, and gradually upgrade as your woodworking evolves.
Don’t forget to include regular maintenance and replacement filters in your budgeting, and always prioritize your health and safety with appropriate personal protective equipment.
